Alloy Steel ASTM A182 F91 Flanges Manufacturers and Suppliers:
Alloy Steel A182 F91 Flanges is a type of alloy steel that is known for its excellent strength, durability, and resistance to corrosion. It is often used in high-temperature and high-pressure applications, making it an ideal material for flanges used in the oil and gas industry, chemical processing plants, and power generation facilities.
We use state-of-the-art technology and advanced manufacturing techniques to produce Alloy Steel A182 F91 Flanges that meet the highest industry standards. Our products are designed to withstand extreme conditions and are tested rigorously to ensure that can perform well even in the most demanding environments.
ISO Approved Alloy Steel A182 F91 Flanges Manufacturer In India, ASME SA182 F91 Blind Flange Dimensions & Weight Chart, Tolerances, Thickness, Cad Drawing, UNS K90901 Pipe Flange
ADCO Forge and Fittings is a renowned company that specializes in manufacturing and supplying a wide range of flanges, including Alloy Steel A182 F91 Flanges. We have been in the industry for years and have built a reputation for delivering high-quality products that meet the needs and expectations of our clients.
One of the things that set apart from other manufacturers is our commitment to customer satisfaction. We work closely with our clients to understand specific needs and requirements, and strive to deliver products that meet those needs. We also offer customization services, allowing clients to get flanges that are tailored to unique needs.
We have a team of highly skilled professionals who are passionate about our work. We are dedicated to delivering products that meet the highest quality standards and exceed our clients’ expectations. Our manufacturing facility is equipped with the latest equipment, enabling to produce flanges that are of the highest quality.
In conclusion, if you are looking for high-quality Alloy Steel A182 F91 Flanges, ADCO Forge is the company to go for. With years of experience, advanced manufacturing techniques, and commitment to customer satisfaction, you can be sure that you will get flanges that meet your specific needs and exceed your expectations.
We have the ready inventory of ASTM A182 Alloy Steel F91 Flanges in the different size ranges of 2 Inch, 3 Inch, 4 Inch, 6 Inch, 9 Inch ASTM A182 F91 Flanges .
Alloy Steel ASTM A182 F91 Flanges Standard Specifications
Standards
ASTM A182 / ASME SA182 Alloy Steel F5 Flanges, ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820
Din
DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN2638, DIN2673
Class
150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40.
JIS/UNI/BS
5K, 10K, 16K, 20K, 30K, 40K, 63K/ 6Bar 10Bar 16Bar 25Bar 40Bar/BS4504 , BS4504, BS1560, BS10
Dimensions
ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size Range (inches)
From ½” (15 NB) to 48″ (1200NB)
Forms
SORF, WNRF, BLRF, SWRF, LAP Joint, Threaded, Reducing, Spectacle
Connection Type
RTJ, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large, Tongue & Groove, Small Tongue & Groove
Face Type
Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
ASTM A182 F91 Slip On Flange, Weld Neck Flange, Forged Flanges, WNR 1.4903 Blind Flange, RTJ Flange, Plate Flange, Chrome Moly A182 F91 SWRF Flange, WNRF Flange, Orifice Flange, Lap Joint Flange. Get best Price List.
ASTM A182 Alloy Steel F91 Flanges Types
If you are looking for ASTM A182 F91 Flanges types, weight chart, size chart, tolerance, and dimensions with drawings then kindly click the below-mentioned forms of pipe fittings as per your requirements to get the complete details. For the quick quote / price list click here.
Alloy Steel A182 F91 Flanges Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. | Trade Name |
|---|---|---|---|
| Alloy Steel F91 | K90901 | 1.4903 | 9Cr-1Mo-V |
ASTM A182 F91 Flanges Chemical Composition
| Grade | C | si | mn | s | P | Cr | Mo |
|---|---|---|---|---|---|---|---|
| Alloy Steel F91 | 0.08 - 0.12 | 0.3 - 0.6 | 0.5 | 0.01 | 0.02 | 8.5 - 9.5 | 0.85 - 1.05 |

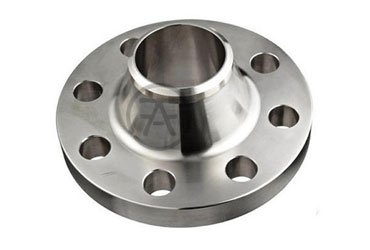

Alloy Steel ASTM A182 F91 Weld Neck Flange Mechanical Properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min |
|---|---|---|---|
| Alloy Steel F91 | 415 | 585 | 20 |
ASTM A182 F91 Threaded Flange Weight Chart
| Flange Weights by Pressure Class and Size | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Pipe Size | 150 # | 300 # | 600 # | 900 # | 1500 # | 2500 # | ||||||||||||
| WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | WN | SO | BLD | |
| 1/2″ | 2 | 1 | 1 | 2 | 1 | 1 | 2 | 2 | 2 | SEE 1500 # WEIGHTS | 5 | 4 | 4 | 7 | 7 | 7 | ||
| 3/4″ | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 3 | 3 | SEE 1500 # WEIGHTS | 6 | 5 | 6 | 8 | 8 | 8 | ||
| 1″ | 3 | 2 | 2 | 4 | 3 | 3 | 4 | 4 | 4 | SEE 1500 # WEIGHTS | 9 | 8 | 8 | 12 | 11 | 11 | ||
| 1 1/2″ | 4 | 3 | 3 | 7 | 6 | 6 | 8 | 7 | 8 | SEE 1500 # WEIGHTS | 13 | 12 | 13 | 25 | 22 | 23 | ||
| 2″ | 6 | 5 | 5 | 9 | 7 | 8 | 12 | 9 | 10 | SEE 1500 # WEIGHTS | 25 | 25 | 25 | 42 | 37 | 39 | ||
| 2 1/2″ | 8 | 7 | 7 | 12 | 10 | 12 | 18 | 13 | 15 | SEE 1500 # WEIGHTS | 36 | 36 | 35 | 52 | 55 | 56 | ||
| 3″ | 10 | 8 | 9 | 15 | 13 | 16 | 23 | 16 | 20 | 31 | 26 | 29 | 48 | 48 | 48 | 94 | 83 | 86 |
| 4″ | 15 | 13 | 17 | 25 | 22 | 27 | 42 | 37 | 41 | 53 | 53 | 54 | 73 | 73 | 73 | 145 | 125 | 130 |
| 5″ | 19 | 15 | 20 | 32 | 28 | 35 | 68 | 63 | 68 | 86 | 83 | 87 | 130 | 130 | 140 | 245 | 210 | 225 |
| 6″ | 24 | 19 | 26 | 42 | 39 | 50 | 81 | 80 | 86 | 110 | 110 | 115 | 165 | 165 | 160 | 380 | 325 | 345 |
| 8″ | 39 | 30 | 45 | 67 | 58 | 81 | 120 | 115 | 140 | 175 | 170 | 200 | 275 | 260 | 300 | 580 | 485 | 530 |
| 10″ | 52 | 43 | 70 | 91 | 81 | 124 | 190 | 170 | 230 | 260 | 245 | 290 | 455 | 435 | 510 | 1075 | 930 | 1025 |
| 12″ | 80 | 64 | 110 | 140 | 115 | 185 | 225 | 200 | 295 | 325 | 325 | 415 | 690 | 580 | 690 | 1525 | 1100 | 1300 |
| 14″ | 110 | 90 | 140 | 180 | 165 | 250 | 280 | 230 | 355 | 400 | 400 | 520 | 940 | NA | 975 | NA | NA | NA |
| 16″ | 140 | 98 | 180 | 250 | 190 | 295 | 390 | 330 | 495 | 495 | 425 | 600 | 1250 | NA | 1300 | NA | NA | NA |
| 18″ | 150 | 130 | 220 | 320 | 250 | 395 | 475 | 400 | 630 | 680 | 600 | 850 | 1625 | NA | 1750 | NA | NA | NA |
| 20″ | 180 | 165 | 285 | 400 | 315 | 505 | 590 | 510 | 810 | 830 | 730 | 1075 | 2050 | NA | 2225 | NA | NA | NA |
| 22″ | 225 | 185 | 355 | 465 | 370 | 640 | 720 | 590 | 1000 | NA | NA | NA | NA | NA | NA | NA | NA | NA |
| 24″ | 260 | 220 | 430 | 580 | 475 | 790 | 830 | 730 | 1250 | 1500 | 1400 | 2025 | 3325 | NA | 3625 | NA | NA | NA |
ASTM A182 Alloy Steel F91 Flanges Dimenssional Tolerance
| WELDING NECK FLANGES | ||||
|---|---|---|---|---|
| 0 | Outside Diameter | When 0 is 24″or less | ±0.06″ | ±1.6 mm |
| When O is over 24” | ±0.12″ | ±3.2 mm | ||
| R | Diameter of Contact Face | 0.06” (1.6 mm) raised face | ±0.03″ | ±0.8 mm |
| 0.25″ (6.4 mm) raised face | ±0.02″ | ±0.5 mm | ||
| A | Diameter of Hub at Point of Welding | NPS 5 and smaller | +0.09″, -0.03″ | +2.4 mm, -0.8 mm |
| NPS 6 and larger | +0.16″, -0.03″ | +4.0 mm, -0.8 mm | ||
| B | Inside Diameter | NPS 10 and smaller | ±0.03″ | ±0.8 mm |
| NPS 12 to 18, inclusive | ±0.06″ | ±1.6 mm | ||
| NPS 20 and larger | +0.12″, -0.06” | +3.2 mm, -1.6 mm | ||
| X | Diameter of Hub at Base | When Hub Base is 24″ or less | ±0.06″ | ±1.6 mm |
| When Hub Base is over 24″ | ±0.12″ | ±3.2 mm | ||
| c | Thickness | NPS 18 and smaller | +0.12″, -0.00″ | +3.2 mm, -0.0 mm |
| NPS 20 and larger | +0.19″, -0.00″ | +4.8 mm, -0.0 mm | ||
| Drilling | Bolt Circle Diameter | ±0.06″ | ±1.6 mm | |
| Bolt Hole Spacing | ±0.03″ | ±0.8 mm | ||
| Eccentricity of Bolt Circle and Facing with Respect to Bore | NPS 21/2 and smaller | ±0.03″ | ±0.8 mm | |
| NPS 3 and larger | ±0.06″ | ±1.6 mm | ||
| Length Through Hub | NPS 10 and smaller | ±0.06″ | ±1.6 mm | |
| NPS 12 and larger | ±0.12″ | ±3.2 mm | ||
| SLIP-ON, LAP JOINT, SOCKET WELDING, THREADED AND BLIND FLANGES | ||||
| O | Outside Diameter | When O is 24″ or less When O is over 24″ |
±0.06″ ±0.12″ | ±1.6 mm ±3.2 mm |
| R | Diameter of Contact Face | 0.06″ (1.6 mm) raised face 0.25″ (6.4 mm) raised face | ±0.03″ ±0.02″ | ±0.8 mm ±0.5 mm |
| B | Inside Diameter at Face of Socket Welding Flanges
Inside Diameter of Slip-On, Lap Joint, and Socket Welding |
NPS 10 and smaller NPS 12 through 18, inclusive NPS 20 and larger |
±0.03″ ±0.06″ +0.12″, -0.06″ | ±0.8 mm ±1.6 mm +3.2 mm, -1.6 mm |
| NPS 10 and smaller NPS 12 and larger |
+0.03″, -0.00″ +0.06″, -0.00″ | +0.8 mm, -0.0 +1.6 mm, -0.0 mm |
||
| Q | Counterbore, Threaded Flanges | NPS 10 and smaller NPS 12 and larger |
+0.03″, -0.00″ +0.06″, -0.00″ | +0.8 mm, -0.0 + 1.6 mm, -0.0 mm |
| X | Diameter of Hub at Base | NPS 12 and smaller NPS 14 and larger |
+0.09″, -0.06″ ±0.12″ | +2.4 mm, -1.6 ±3.2 mm |
| c | Thickness | NPS 18 and smaller NPS 20 and larger |
+0.12″, -0.00″ +0.19″, -0.00″ | +3.2 mm, -0.0 +4.8 mm, -0.0 mm |
| Drilling | Bolt Circle Diameter Bolt Hole Spacing | ±0.06″ ±0.03″ | ±1.6 mm ±0.8 mm |
|
| Eccentricity of Bolt Circle and Facing with Respect to Bore | NPS 2V2 and smaller NPS 3 and larger |
±0.03″ ±0.06″ | ±0.8 mm ±1.6 mm |
|
| Overall Length Through Hub | NPS 18 and smaller NPS 20 and larger |
+0.12”, -0.03” +0.19”, -0.03” |
+3.2 mm, -0.8 mm +4.8 mm, -1.6 mm |
|
ASTM A182 F91 Forged Flange Applications
Oil and Gas
Nuclear Power & Defence
Petrochemical
LNG
Desalination
Mining & Minerals
