Nickel Alloy Outlet Fitting Manufacturers and Suppliers:
High Nickel Alloys Outlet refers to a supplier or distributor of high nickel alloys, which are materials that contain a high percentage of nickel, often combined with other elements such as chromium, molybdenum, or iron. These High Nickel Alloys Outlets are known for their excellent resistance to corrosion and high temperature, making ideal for use in a variety of applications including chemical processing, aerospace, and nuclear industries.

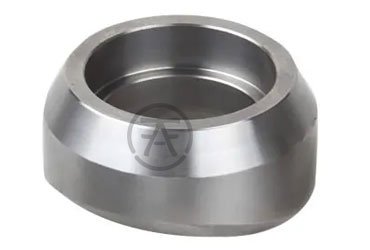

ISO Approved Hastelloy Weldolet Manufacturer In India, Inconel Sockolet, Monel Thredolet, Copper Nickel Elbolet, Inconel 600 Nipolet, Hastelloy C22 Latrolet Dimensions Chart, Tolerances, Weight Chart
High Nickel Alloys Outlet may supply a range of products including bars, sheets, plates, pipes, and fittings made from high nickel alloys. These High Nickel Alloys Outlet may be available in various grades and specifications to meet the specific needs of the customer. High Nickel Alloys Outlet may also provide services such as cutting, machining, and fabrication to further customize the products to the customer’s requirements.
High Nickel Alloys Outlet may cater to industries such as oil and gas, petrochemicals, power generation, and pharmaceuticals. We may work closely with our customers to provide technical support and expertise to help select the appropriate high nickel alloy products for specific applications.
Hastelloy Weldolet Standard Specifications
Standards
ASME B31.3, B31.1, B31.8, B31.4, ASME/ANSI B16.11, MSS-SP-97
Thickness
SCH 5S, SCH 10S, SCH 40S, SCH 80S, SCH 120S
Form
Welding Outlets, Welding Olets
Dimensions
ASME B31.3,1,8,4 | ASME/ANSI B16.11 | MSS-SP-97 | JIS B2316 | BS 3799
Size Range (inches)
From 2″ – 24″
Class
3000 LBS, 6000 LBS, 9000 LBS
ASTM A182 Outlets, Inconel 625 Coupolet, Hastelloy C276 Sweepolet, Incoloy 800 Flexolet, Monel 400 Flangolet, Incoloy 800 Brazolet, Incoloy 825 Outlets, Alloy 20 Sockolet, SMO 254 Outlets, Titanium Alloy Weldolet. Get best Price List.
High Nickel Alloy Outlet Fittings Types
If you are looking for Nickel Alloy Olets Fittings types, weight chart, size chart, tolerance, and dimensions with drawings then kindly click the below-mentioned forms of pipe fittings as per your requirements to get the complete details. For the quick quote / price list click here.
Nickel Alloy Outlets Material Grades
| High Nickel Alloy Outlets: | ASTM / ASME SB B160 / B166 / B564 / B425/ B564 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C276 ), Cupro Nickel 90/10 ( C70600, 2.0872 ), 70/30 ( C71500, 2.0882), ASTM B381 Titanium Grade 2 ( R50400, 3.7035 ), Titanium Grade 5 ( N56400, 3.7165 ), ASTM B462 Alloy 20, ASTM A182 SMO 254/AL-6XN ( S31254, 1.4547 ), AISI 4130 ( G41300, 1.7218 ) |
|---|
High Nickel Alloy Outlets Dimensions

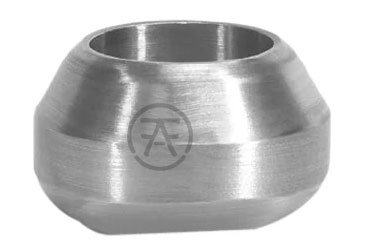

High Nickel Alloy Weldolet - Dimensions Chart
Dimensions of High Nickel Alloy Weldolet (NPS 1/2 - 24 STD Size on Size)
| NPS | A | B | C | D |
|---|---|---|---|---|
| 1/2 | 3/4 19.05 |
1.3/8 34.93 |
15/16 23.81 |
5/8 15.88 |
| 3/4 | 7/8 22.23 |
1.5/8 41.28 |
1.3/16 30.16 |
13/16 20.64 |
| 1 | 1.1/16 26.99 |
2 50.80 |
1.7/16 36.51 |
1.1/32 26.19 |
| 1.1/4 | 1.1/4 31.75 |
2.3/8 60.3 |
1.3/4 44.45 |
1.3/8 34.93 |
| 1.1/2 | 1.5/16 33.34 |
2.7/8 73 |
2 50.80 |
1.5/8 41.28 |
| 2 | 1.1/2 38.10 |
3.1/2 88.90 |
2.9/16 65.09 |
2.1/16 52.39 |
| 2.1/2 | 1.5/8 41.28 |
4.1/16 103.19 |
3 76.20 |
2.7/16 61.91 |
| 3 | 1.3/4 44.45 |
4.13/16 122.24 |
3.11/16 93.66 |
3.1/16 77.79 |
| 3.1/2 | 2 50.80 |
5.3/8 136.53 |
3.7/8 98.43 |
3.9/16 90.49 |
| 4 | 2 50.80 |
6 152.40 |
4.3/4 120.65 |
4 101.60 |
| 5 | 2.1/4 57.15 |
7.1/8 180.98 |
5.9/16 141.29 |
5.1/16 128.59 |
| 6 | 2.3/8 60.3 |
8.1/2 215.90 |
6.11/16 169.86 |
6.1/16 153.99 |
| 8 | 2.3/4 69.85 |
10.3/8 263.53 |
8.11/16 220.66 |
7.15/16 201.61 |
| 10 | 3.1/16 77.79 |
12.9/16 319.09 |
10.13/16 274.64 |
10 254.00 |
| 12 | 3.3/8 85.73 |
14.7/8 377.83 |
12.13/16 325.44 |
12 304.80 |
| 14 | 3.1/2 88.90 |
16.1/8 409.58 |
14.1/16 357.19 |
13.1/4 336.55 |
| 16 | 3.11/16 93.66 |
18¼ 463.55 |
16.1/16 407.99 |
15¼ 387.35 |
| 18 | 4.1/16 103.19 |
20.3/4 527.05 |
18.5/8 473.08 |
17¼ 438.15 |
| 20 | 4.5/8 117.48 |
23.1/16 585.79 |
20.1/16 509.59 |
19¼ 488.95 |
| 24 | 5.3/8 136.53 |
27.7/8 708.03 |
25.1/8 638.18 |
23.1/4 590.55 |
Dimensions of Weldolet (NPS 1/2 - 24 XS Size on Size)
| NPS | A | B | C | D |
|---|---|---|---|---|
| 1/2 | 3/4 19.05 |
1.3/8 34.93 |
15/16 23.81 |
5/8 15.88 |
| 3/4 | 7/8 22.23 |
1.5/8 41.28 |
1.3/16 30.16 |
13/16 20.64 |
| 1 | 1.1/16 26.99 |
2 50.80 |
1.7/16 36.51 |
1.1/32 26.19 |
| 1.1/4 | 1.1/4 31.75 |
2.7/16 61.91 |
1.3/4 44.45 |
1.3/8 34.93 |
| 1.1/2 | 1.5/16 33.34 |
2.7/8 73 |
2 50.80 |
1.5/8 41.28 |
| 2 | 1.1/2 38.10 |
3.1/2 88.90 |
2.9/16 65.09 |
2.1/16 52.39 |
| 2.1/2 | 1.5/8 41.28 |
4.1/16 103.19 |
3 76.20 |
2.7/16 61.91 |
| 3 | 1.3/4 44.45 |
4.13/16 122.24 |
3.11/16 93.66 |
3.1/16 77.79 |
| 3.1/2 | 2 50.80 |
5.3/8 136.53 |
3.7/8 98.43 |
3.9/16 90.49 |
| 4 | 2 50.80 |
6 152.40 |
4.3/4 120.65 |
4 101.60 |
| 5 | 2.1/4 57.15 |
7.1/8 180.98 |
5.9/16 141.29 |
5.1/16 128.59 |
| 6 | 3.1/16 77.79 |
8.7/8 225.43 |
6.11/16 169.86 |
6.1/16 153.99 |
| 8 | 3.7/8 98.43 |
10.5/8 269.88 |
8.11/16 220.66 |
7.5/8 193.68 |
| 10 | 3.1/2 88.90 |
12.7/8 327.03 |
10.7/16 265.11 |
9.3/4 254.00 |
| 12 | 3.15/16 100.01 |
15.3/16 385.76 |
13 330.20 |
11.3/4 304.80 |
| 14 | 4.1/8 104.78 |
16.11/16 423.86 |
14.5/16 363.54 |
13 330.20 |
| 16 | 4.7/16 112.71 |
18.7/8 479.43 |
16.1/2 419.10 |
15 381.00 |
| 18 | 4.11/16 119.06 |
21.1/8 536.58 |
18.5/8 473.08 |
17 431.80 |
| 20 | 5 127.00 |
23.3/8 593.73 |
20.13/16 528.64 |
19 482.60 |
| 24 | 5.1/2 139.70 |
27.7/8 708.03 |
25.1/8 638.18 |
23 584.20 |
Dimensions of Weldolet (NPS 3/4 - 20 STD Reducing)
| NPS | A | B | C |
|---|---|---|---|
| 1/2 | 3/4 19.05 |
1.3/8 34.93 |
15/16 23.81 |
| 3/4 | 7/8 22.23 |
1.3/4 44.45 |
1.3/16 30.16 |
| 1 | 1.1/16 26.99 |
2.1/8 53.98 |
1.7/16 36.51 |
| 1.1/4 | 1.1/4 31.75 |
2.9/16 65.09 |
1.3/4 44.45 |
| 1.1/2 | 1.5/16 33.34 |
2.7/8 73 |
2 50.80 |
| 2 | 1.1/2 38.10 |
3.1/2 88.90 |
2.9/16 65.09 |
| 2.1/2 | 1.5/8 41.28 |
4.1/16 103.19 |
3 76.20 |
| 3 | 1.3/4 44.45 |
4.13/16 122.24 |
3.11/16 93.66 |
| 3.1/2 | 1.7/8 47.63 |
5.5/8 142.88 |
4 101.60 |
| 4 | 2 50.80 |
6 152.40 |
4.3/4 120.65 |
| 5 | 2.1/4 57.15 |
7.1/16 179.39 |
5.9/16 141.29 |
| 6 | 2.3/8 60.3 |
8.1/2 215.90 |
6.11/16 169.86 |
| 8 | 2.3/4 69.85 |
10.3/8 263.53 |
8.11/16 220.66 |
| 10 | 3.1/16 77.79 |
12.11/16 322.26 |
10.13/16 274.64 |
| 12 | 3.3/8 85.73 |
14.7/8 377.83 |
12.13/16 325.44 |
| 14 | 3.1/2 88.90 |
16.1/8 409.58 |
14.1/16 357.19 |
| 16 | 3.11/16 93.66 |
18¼ 463.55 |
16.1/16 407.99 |
| 18 | 3.13/16 96.84 |
20.1/2 520.70 |
18.1/16 458.79 |
| 20 | 4 101.60 |
22.1/2 571.50 |
20 508.00 |
| 24 | 4.9/16 115.89 |
27.1/8 688.98 |
24.3/16 614.36 |
Dimensions of Weldolet (NPS 3/4 - 20 XS Reducing)
| NPS | A | B | C |
|---|---|---|---|
| 1/2 | 3/4 19.05 |
1.3/8 34.93 |
15/16 23.81 |
| 3/4 | 7/8 22.23 |
1.3/4 44.45 |
1.3/16 30.16 |
| 1 | 1.1/16 26.99 |
2.1/8 53.98 |
1.7/16 36.51 |
| 1.1/4 | 1.1/4 31.75 |
2.9/16 65.09 |
1.3/4 44.45 |
| 1.1/2 | 1.5/16 33.34 |
2.7/8 73 |
2 50.80 |
| 2 | 1.1/2 38.10 |
3.1/2 88.90 |
2.9/16 65.09 |
| 2.1/2 | 1.5/8 41.28 |
4.1/16 103.19 |
3 76.20 |
| 3 | 1.3/4 44.45 |
4.13/16 122.24 |
3.11/16 93.66 |
| 3.1/2 | 1.7/8 47.63 |
5.5/8 142.88 |
4 101.60 |
| 4 | 2 50.80 |
6 152.40 |
4.3/4 120.65 |
| 5 | 2.1/4 57.15 |
7.1/16 179.39 |
5.9/16 141.29 |
| 6 | 2.3/8 60.3 |
8.1/2 215.90 |
6.11/16 169.86 |
| 8 | 2.3/4 69.85 |
10.3/8 263.53 |
8.11/16 220.66 |
| 10 | 3.1/16 77.79 |
12.11/16 322.26 |
10.13/16 274.64 |
| 12 | 3.3/8 85.73 |
14.7/8 377.83 |
12.13/16 325.44 |
| 14 | 3.1/2 88.90 |
16.1/8 409.58 |
14.1/16 357.19 |
| 16 | 3.11/16 93.66 |
18¼ 463.55 |
16.1/16 407.99 |
| 18 | 3.13/16 96.84 |
20.1/2 520.70 |
18.1/16 458.79 |
| 20 | 4 101.60 |
22.1/2 571.50 |
20 508.00 |
| 24 | 4.9/16 115.89 |
27.1/8 688.98 |
24.3/16 614.36 |
High Nickel Alloy Brazolet - Dimensions Chart
Dimensions Chart of Brazolet
| Outlet Sizes | A | B | C | Brazing Surface | F-MIN. MIL-1183 |
|---|---|---|---|---|---|
| 1/4 | 11/16 | 1 | 9/16 | 0.188 | 0.700 |
| 3/8 | 13/16 | 1 1/4 | 3/4 | 0.190 | 0.855 |
| 1/2 | 1 | 1 7/16 | 7/8 | 0.220 | 1.020 |
| 3/4 | 1 1/16 | 1 3/4 | 1 1/8 | 0.240 | 1.250 |
| 1 | 1 1/4 | 2 1/8 | 1 7/16 | 0.270 | 1.535 |
| 1 1/4 | 1 5/16 | 2 9/16 | 1 3/4 | 0.300 | 1.900 |
| 1 1/2 | 1 3/8 | 2 7/8 | 2 | 0.330 | 2.160 |
| 2 | 1 1/2 | 3 1/2 | 2 9/16 | 0.360 | 2.675 |
| 2 1/2 | 1 13/16 | 4 1/8 | 3 | 0.384 | 3.215 |
| 3 | 2 | 4 13/16 | 3 11/16 | 0.442 | 3.880 |
| 4 | 2 1/4 | 6 | 4 3/4 | 0.476 | 4.940 |
| 5 | 2 5/8 | 7 1/16 | 5 9/16 | 0.656 | 6.163 |
| Outlet Sizes | A | B | C | Brazing Surface | F-MIN. MIL-1183 |
|---|---|---|---|---|---|
| 1/4 | 11/16 | 1 | 9/16 | 0.188 | 0.700 |
| 3/8 | 13/16 | 1 1/4 | 3/4 | 0.190 | 0.855 |
| 1/2 | 13/16 | 1 1/4 | 3/4 | 0.190 | 0.855 |
| 3/4 | 1 | 1 7/16 | 7/8 | 0.220 | 1.020 |
| 1 | 1 1/16 | 1 3/4 | 1 1/8 | 0.240 | 1.250 |
| 1 1/4 | 1 1/4 | 2 1/8 | 1 7/16 | 0.270 | 1.535 |
| 1 1/2 | 1 5/16 | 2 9/16 | 1 3/4 | 0.300 | 1.900 |
| 2 | 1 3/8 | 2 7/8 | 2 | 0.330 | 2.160 |
| 2 1/2 | 1 1/2 | 3 1/2 | 2 9/16 | 0.360 | 2.675 |
| 3 | 1 13/16 | 4 1/8 | 3 | 0.384 | 3.215 |
| 4 | 2 1/8 | 5 1/2 | 4 5/16 | 0.437 | 4.400 |
High Nickel Alloy Coupolet - Socket Weld - Dimensions Chart
Dimensions of Socket Weld Coupolet (3000# and 6000#, 9000# )
| Nominal Pipe Size | Socket Bore Diam., B | Bore Diameter of Fittings, D | Socket Wall Thickness, C [Note (1)] | Outside Dia. Couplet,G | Tol ± | Socket Depth, J | End to End Couplet, M | Weld Ring Diameter, N | Weld Ring Length,Q | Tol ± | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. | Min. | 3000 | 6000 | 9000 | 3000 | 6000 | 9000 | |||||||||||||||||
| Max. | Min. | Max. | Min. | Max. | Min. | Avg. | Min. | Avg. | Min. | Avg. | Min. | 3000 | 6000 | Min. | Tol | Tol | 3000/6000 | |||||||
| 1/8 | 11.2 | 10.8 | 7.6 | 6.1 | 4.8 | 3.2 | 3.18 | 3.18 | 3.96 | 3.43 | ±1.5/-0.0 | 9.5 | 6.4 | |||||||||||
| 1/4 | 14.6 | 14.2 | 10.0 | 8.5 | 7.1 | 5.6 | 3.78 | 3.30 | 4.60 | 4.01 | 23.8 | 25.4 | ±1.5/-0.0 | 9.5 | 6.4 | 30.2 | ±0.81-0.0 | 17.5 | ±1.5/-0.0 | |||||
| 3/8 | 18.0 | 17.6 | 13.3 | 11.8 | 9.9 | 8.4 | 4.01 | 3.50 | 5.03 | 4.37 | 27.0 | 31.8 | ±1.5/-0.0 | 9.5 | 6.4 | 30.2 | ±0.81-0.0 | 20.7 | ±1.5/-0.0 | |||||
| 1/2 | 22.2 | 21.8 | 16.6 | 15.0 | 12.5 | 11.0 | 7.2 | 5.6 | 4.67 | 4.09 | 5.97 | 5.18 | 9.35 | 8.18 | 33.4 | 38.1 | ±1.5/-0.0 | 9.5 | 7.9 | 11.2 | 311 | ±0.81-0.0 | 23.8 | ±1.5/-0.0 |
| 3/4 | 27.6 | 27.2 | 21.7 | 20.2 | 16.3 | 14.8 | 11.8 | 10.3 | 4.90 | 4.27 | 6.96 | 6.04 | 9.78 | 8.56 | 38.1 | 44.5 | ±1.5/-0.0 | 12.5 | 7.9 | 12.7 | 34.9 | ±0.0/-0.0 | 27.0 | ±1.5/-0.0 |
| 1 | 34.3 | 33.9 | 27.4 | 25.9 | 21.5 | 19.9 | 16.0 | 14.4 | 5.69 | 4.98 | 7.92 | 6.93 | 11.38 | 9.96 | 46.1 | 57.2 | ±1.5/-0.0 | 12.5 | 11.2 | 14.2 | 47.6 | ±0.8/-0.0 | 42.9 | ±1.5/-0.0 |
| 1 1/4 | 43.1 | 42.7 | 35.8 | 34.3 | 30.2 | 28.7 | 23.5 | 22.0 | 6.07 | 5.28 | 7.92 | 6.93 | 12.14 | 10.62 | 55.6 | 63.5 | ±1.5/-0.0 | 12.5 | 11.2 | 14.2 | 47.6 | ±0.0/-0.0 | 42.9 | ±1.5/-0.0 |
| 1 1/2 | 49.2 | 48.8 | 41.6 | 40.1 | 34.7 | 33.2 | 28.7 | 27.2 | 6.35 | 5.54 | 8.92 | 7.80 | 12.70 | 11.12 | 63.5 | 76.2 | ±1.5/-0.0 | 12.5 | 12.7 | 15.7 | 50.8 | ±0.8/-0.0 | 49.2 | ±1.51-0.0 |
| 2 | 61.7 | 61.2 | 53.3 | 51.7 | 43.6 | 42.1 | 38.9 | 37.4 | 6.93 | 6.04 | 10.92 | 9.50 | 13.84 | 12.12 | 79.4 | 92.1 | ±1.5/-0.0 | 16.0 | 15.7 | 19.0 | 57.2 | ±1.5/-0.0 | 61.9 | ±L5/-0.0 |
| 2 1/2 | 74.4 | 73.9 | 64.2 | 61.2 | 8.76 | 7.67 | 92.1 | 100.0 | ±1.51-0.0 | 16.0 | 19.0 | 63.5 | ±1.51-0.0 | 73.0 | ±1.51-0.0 | |||||||||
| 3 | 90.3 | 89.8 | 79.4 | 76.4 | 9.52 | 8.30 | 111.1 | 127.0 | ±1.5/-0.0 | 16.0 | 22.4 | 69.9 | ±1.51-0.0 | 88.9 | ±1.51-0.0 | |||||||||
| 4 | 115.7 | 115.2 | 103.8 | 100.7 | 10.69 | 9.35 | 141.3 | 158.8 | ±1.5/-0.0 | 19.0 | 28.4 | 76.2 | ±1.51-0.0 | 114.3 | ||||||||||
High Nickel Alloy Coupolet - Threaded - Dimensions Chart
Dimensions of Threaded Coupolet (3000# and 6000#, 9000#)
| Class 6000 Threaded and Socket Weld | ||||
|---|---|---|---|---|
| Size | A | B | C | E |
| 1/4 | 39.69 | 59.53 | 36.51 | 39.69 |
| 3/8 | 39.69 | 59.53 | 36.51 | 39.69 |
| 1/2 | 47.63 | 69.85 | 44.45 | 48.42 |
| 3/4 | 55.56 | 82.55 | 53.98 | 55.56 |
| 1 | 63.50 | 92.87 | 66.68 | 62.71 |
| 1 1/4 | 69.85 | 107.16 | 76.99 | 66.68 |
| 1 1/2 | 85.73 | 138.11 | 104.78 | 80.17 |
| 2 | 85.73 | 138.11 | 104.78 | 80.17 |
High Nickel Alloy Elbolet - Dimensions Chart
Dimensions of Elbolet (L= E + SQRT(B2 - A2 + ROOT GAP))
| Nominal Size of Elbow (NPS) | Outlet Size (NPS) | CL 3000 Threaded and Socket Weld Sch. Standard and XS Buttweld |
CL 6000 Threaded and Socket Weld Sch. 160 and XXS Buttweld |
||
|---|---|---|---|---|---|
| C | E | C | E | ||
| 36 – 3/4 | 1/4 | 1 1/2 | 1 19/32 | 1 1/2 | 1 19/32 |
| 36 – 3/4 | 3/8 | 1 1/2 | 1 19/32 | 1 1/2 | 1 19/32 |
| 36 – 3/4 | 1/2 | 1 1/2 | 1 19/32 | 1 23/32 | 1 7/8 |
| 36 – 1 | 3/4 | 1 23/32 | 1 7/8 | 2 1/4 | 2 1/4 |
| 36 – 2 | 1 | 2 1/4 | 2 1/4 | 2 7/8 | 2 1/2 |
| 36 – 2 | 1 1/4 | 2 7/8 | 2 1/2 | 3 1/8 | 2 11/16 |
| 36 – 2 | 1 1/2 | 3 1/8 | 2 11/16 | 4 3/16 | 3 1/4 |
| 36 – 3 | 2 | 4 3/16 | 3 1/4 | – | – |
| Order to Specific Elbow Sizes |
|||||
| *2 1/2 | 4 3/16 | 3 1/4 | bw only | bw only | |
| *3 | 5 1/16 | 3 7/8 | bw only | bw only | |
| *4 | 6 5/8 | 4 13/16 | bw only | bw only | |
| *6 | 9 3/8 | 6 1/2 | bw only | bw only | |
| *8 | 13 5/16 | 8 1/16 | bw only | bw only | |
| *10 | 17 1/32 | 10 3/8 | bw only | bw only | |
| *12 | 19 5/8 | 11 1/8 | bw only | bw only | |
High Nickel Alloy Flangolet - Dimensions & Weight Chart
Dimensions & Weight Chart of Flageolet Branch ½”
| RATING | NOMINAL PIPE SIZE FROM 3/4" TO 36" | |||||
|---|---|---|---|---|---|---|
| Bore schedule | B | C | D | E | Weight [kg] | |
| STD | 15,8 | 18,5 | 0,9 | |||
| Flangeolet 150# | XS | 13,8 | 17,6 | 88,9 | 11,2 | 0,9 |
| 160 | 11,7 | 11,7 | 0,9 | |||
| XXS | 6,4 | 6,4 | 0,9 | |||
| Bore schedule | B | C | D | E | Weight [kg] | |
| STD | 15,8 | 18,5 | 1,2 | |||
| Flange Olet 300# | XS | 13,8 | 17,6 | 95,3 | 14,3 | 1,2 |
| 160 | 11,7 | 11,7 | 1,2 | |||
| XXS | 6,4 | 6,4 | 1,2 | |||
| Bore schedule | B | C | D | E | Weight [kg] | |
| STD | 15,8 | 18,5 | 1,3 | |||
| 600# | XS | 13,8 | 17,6 | 95,3 | 14,3 | 1,3 |
| 160 | 11,7 | 11,7 | 1,3 | |||
| XXS | 6,4 | 6,4 | 1,3 | |||
| Bore schedule | B | C | D | E | Weight [kg] | |
| STD | 15,8 | 18,5 | 2,4 | |||
| 900# Flange Olet | XS | 13,8 | 17,6 | 120,6 | 22,4 | 2,4 |
| 160 | 11,7 | 11,7 | 2,4 | |||
| XXS | 6,4 | 6,4 | 2,4 | |||
| Bore schedule | B | C | D | E | Weight [kg] | |
| STD | 15,8 | 18,5 | 2,4 | |||
| 1500# | XS | 13,8 | 17,6 | 120,6 | 22,4 | 2,4 |
| 160 | 11,7 | 11,7 | 2,4 | |||
| XXS | 6,4 | 6,4 | 2,4 | |||
| Bore schedule | B | C | D | E | Weight [kg] | |
| STD | 15,8 | 18,5 | 3,6 | |||
| 2500# | XS | 13,8 | 17,6 | 133,4 | 30,2 | 3,6 |
| 160 | 11,7 | 11,7 | 3,6 | |||
| XXS | 6,4 | 6,4 | 3,6 | |||
Dimensions & Weight Chart of Flageolet Branch 1
| RATING | NOMINAL PIPE SIZE FROM 1.1/2" TO 36" | |||||
|---|---|---|---|---|---|---|
| Bore schedule | B | C | D | E | Weight [kg] | |
STD |
26,6 |
30 |
1,7 |
|||
| Flange olet 150# | XS |
24,3 |
28,8 |
108 |
14,3 |
1,7 |
160 |
20,7 |
20,7 |
2 |
|||
XXS |
15,2 |
15,2 |
2,2 |
|||
| Bore schedule | B | C | D | E | Weight [kg] | |
STD |
26,6 |
30 |
2,3 |
|||
| 300# | XS |
24,3 |
28,8 |
124 |
17,6 |
2,5 |
160 |
20,7 |
20,7 |
2,6 |
|||
XXS |
15,2 |
15,2 |
2,8 |
|||
| Bore schedule | B | C | D | E | Weight [kg] | |
STD |
26,6 |
30 |
2,6 |
|||
| Flange olet 600# | XS |
24,3 |
28,8 |
124 |
17,6 |
2,7 |
160 |
20,7 |
20,7 |
2,8 |
|||
XXS |
15,2 |
15,2 |
3 |
|||
| Bore schedule | B | C | D | E | Weight [kg] | |
STD |
26,6 |
30 |
4,5 |
|||
| 900# | XS |
24,3 |
28,8 |
149,4 |
28,5 |
4,6 |
160 |
20,7 |
20,7 |
4,7 |
|||
XXS |
15,2 |
15,2 |
4,8 |
|||
| Bore schedule | B | C | D | E | Weight [kg] | |
STD |
26,6 |
30 |
4,5 |
|||
| Flange olet 1500# | XS |
24,3 |
28,8 |
149,4 |
28,5 |
4,6 |
160 |
20,7 |
20,7 |
4,7 |
|||
XXS |
15,2 |
15,2 |
4,8 |
|||
| Bore schedule | B | C | D | E | Weight [kg] | |
STD |
26,6 |
30 |
6,1 |
|||
| 2500# | XS |
24,3 |
28,8 |
158,8 |
35,1 |
6,2 |
160 |
20,7 |
20,7 |
6,2 |
|||
XXS |
15,2 |
15,2 |
6,3 |
|||
Dimensions & Weight Chart of Flageolet Branch 1½”
| RATING | NOMINAL PIPE SIZE FROM 2" TO 36" | ||||||
|---|---|---|---|---|---|---|---|
| Bore schedule | B | C | D | E | Weight [kg] | ||
| STD | 40,9 | 44,6 | 3,1 | ||||
| Flange olet 150# | XS | 38,1 | 43,2 | 127 | 17,5 | 3,3 | |
| 160 | 34 | 34 | 3,5 | ||||
| XXS | 28 | 28 | 3,8 | ||||
| Bore schedule | B | C | D | E | Weight [kg] | ||
| STD | 40,9 | 44,6 | 4,1 | ||||
| 300# | XS | 38,1 | 43,2 | 155,5 | 20,6 | 4,5 | |
| 160 | 34 | 34 | 4,7 | ||||
| XXS | 28 | 28 | 5 | ||||
| Bore schedule | B | C | D | E | Weight [kg] | ||
| STD | 40,9 | 44,6 | 4,9 | ||||
| Flange olet 600# | XS | 38,1 | 43,2 | 155,5 | 22,4 | 5 | |
| 160 | 34 | 34 | 5,2 | ||||
| XXS | 28 | 28 | 5,5 | ||||
| Bore schedule | B | C | D | E | Weight [kg] | ||
| STD | 40,9 | 44,6 | 7,2 | ||||
| Flange olet 900# | XS | 38,1 | 43,2 | 177,8 | 31,8 | 7,4 | |
| 160 | 34 | 34 | 7,6 | ||||
| XXS | 28 | 28 | 7,9 | ||||
| Bore schedule | B | C | D | E | Weight [kg] | ||
| STD | 40,9 | 44,6 | 7,2 | ||||
| 1500# | XS | 38,1 | 43,2 | 177,8 | 31,8 | 7,4 | |
| 160 | 34 | 34 | 7,6 | ||||
| XXS | 28 | 28 | 7,9 | ||||
| Bore schedule | B | C | D | E | Weight [kg] | ||
| STD | 40,9 | 44,6 | 12 | ||||
| Flange olet 2500# | XS | 38,1 | 43,2 | 203,2 | 44,5 | 12 | |
| 160 | 34 | 34 | 12,2 | ||||
| XXS | 28 | 28 | 12,5 | ||||
Dimensions & Weight Chart of Flageolet Branch 2
| RATING | NOMINAL PIPE SIZE FROM 3" TO 36" | ||||||
|---|---|---|---|---|---|---|---|
| Bore schedule | B | C | D | E | Weight [kg] | ||
| STD | 52,5 | 56,4 | 4,1 | ||||
| Flange Olet 150# | XS | 49,2 | 54,8 | 152,4 | 19,1 | 4,8 | |
| 160 | 42,8 | 42,8 | 5,1 | ||||
| XXS | 38,2 | 38,2 | 5,5 | ||||
| Bore schedule | B | C | D | E | Weight [kg] | ||
| STD | 52,5 | 56,4 | 5,5 | ||||
| 300# | XS | 49,2 | 54,8 | 165,1 | 22,4 | 5,8 | |
| 160 | 42,8 | 42,8 | 6,1 | ||||
| XXS | 38,2 | 38,2 | 6,5 | ||||
| Bore schedule | B | C | D | E | Weight [kg] | ||
| STD | 52,5 | 56,4 | 6,2 | ||||
| 600# | XS | 49,2 | 54,8 | 165,1 | 25,4 | 6,5 | |
| 160 | 42,8 | 42,8 | 7 | ||||
| XXS | 38,2 | 38,2 | 7,2 | ||||
| Bore schedule | B | C | D | E | Weight [kg] | ||
| STD | 52,5 | 56,4 | 13 | ||||
| Flange Olet 900# | XS | 49,2 | 54,8 | 215,9 | 38,1 | 13,3 | |
| 160 | 42,8 | 42,8 | 13,6 | ||||
| XXS | 38,2 | 38,2 | 13,9 | ||||
| Bore schedule | B | C | D | E | Weight [kg] | ||
| STD | 52,5 | 56,4 | 13 | ||||
| 1500# | XS | 49,2 | 54,8 | 215,9 | 38,1 | 13,3 | |
| 160 | 42,8 | 42,8 | 13,6 | ||||
| XXS | 38,2 | 38,2 | 13,9 | ||||
| Bore schedule | B | C | D | E | Weight [kg] | ||
| STD | 52,5 | 56,4 | 18,4 | ||||
| 2500# | XS | 49,2 | 54,8 | 235 | 50,8 | 18,6 | |
| 160 | 42,8 | 42,8 | 19 | ||||
| XXS | 38,2 | 38,2 | 19,3 | ||||
Dimensions & Weight Chart of Flageolet Branch 3
| RATING | NOMINAL PIPE SIZE FROM 4" TO 36" | ||||
|---|---|---|---|---|---|
| Bore schedule | Length | D | E | Weight [kg] | |
| 150# | 10-STD | 115 | 7,5 | ||
| XS-80 | 115 | 191 | 23,9 | 7,5 | |
| 160-XXS | 145 | 8 | |||
| Bore schedule | Length | D | E | Weight [kg] | |
| Flange Olet 300# | 10-STD | 125 | 10 | ||
| XS-80 | 125 | 210 | 28,5 | 10 | |
| 160-XXS | 150 | 11 | |||
| Bore schedule | Length | D | E | Weight [kg] | |
| 600# | 10-STD | 135 | 13,5 | ||
| XS-80 | 135 | 210 | 38,2 | 13,5 | |
| 160-XXS | 165 | 14,5 | |||
| Bore schedule | Length | D | E | Weight [kg] | |
| 900# | 10-STD | 155 | 17 | ||
| XS-80 | 155 | 241 | 44,5 | 17 | |
| 160-XXS | 180 | 18 | |||
| Bore schedule | Length | D | E | Weight [kg] | |
| Flange Olet 1500# | 10-STD | 170 | 25 | ||
| XS-80 | 170 | 267 | 54,1 | 25 | |
| 160-XXS | 200 | 26 | |||
| Bore schedule | Length | D | E | Weight [kg] | |
| Flange Olet 2500# | 10-STD | 220 | 45,5 | ||
| XS-80 | 220 | 305 | 72,9 | 45,5 | |
| 160-XXS | 250 | 51 | |||
Dimensions & Weight Chart of Flageolet Branch 4
| RATING | NOMINAL PIPE SIZE FROM 5" TO 36" | ||||
|---|---|---|---|---|---|
| Bore schedule | Length | D | E | Weight [kg] | |
| Flange Olet 150# | 10-STD |
130 |
11,5 |
||
XS-80 |
130 |
229 |
23,9 |
11,5 |
|
160-XXS |
160 |
13 |
|||
| Bore schedule | Length | D | E | Weight [kg] | |
| 300# | 10-STD |
140 |
16 |
||
XS-80 |
140 |
254 |
31,8 |
16 |
|
160-XXS |
170 |
17 |
|||
| Bore schedule | Length | D | E | Weight [kg] | |
| Flange Olet 600# | 10-STD |
160 |
24 |
||
XS-80 |
160 |
273 |
44,5 |
24 |
|
160-XXS |
195 |
26 |
|||
| Bore schedule | Length | D | E | Weight [kg] | |
| Flange Olet 900# | 10-STD |
170 |
28 |
||
XS-80 |
170 |
292 |
50,8 |
28 |
|
160-XXS |
205 |
29,5 |
|||
| Bore schedule | Length | D | E | Weight [kg] | |
| Flange Olet 1500# | 10-STD |
180 |
38 |
||
XS-80 |
180 |
311 |
60,2 |
38 |
|
160-XXS |
215 |
40 |
|||
| Bore schedule | Length | D | E | Weight [kg] | |
| 2500# | 10-STD |
250 |
70,5 |
||
XS-80 |
250 |
356 |
82,4 |
70,5 |
|
160-XXS |
281 |
72 |
|||
Dimensions & Weight Chart of Flageolet Branch 6
| RATING | NOMINAL PIPE SIZE FROM 8" TO 36" | ||||
|---|---|---|---|---|---|
| Bore schedule | Length | D | E | Weight [kg] | |
| Flange Olet 150# | 10-STD | 150 | 23,5 | ||
| XS-80 | 170 | 279 | 25,4 | 25 | |
| 160-XXS | 195 | 27 | |||
| Bore schedule | Length | D | E | Weight [kg] | |
| Flange Olet 300# | 10-STD | 160 | 36,6 | ||
| XS-80 | 175 | 318 | 36,6 | 37,5 | |
| 160-XXS | 205 | 39 | |||
| Bore schedule | Length | D | E | Weight [kg] | |
| 600# | 10-STD | 185 | 49,5 | ||
| XS-80 | 200 | 356 | 54,1 | 51 | |
| 160-XXS | 230 | 53,2 | |||
| Bore schedule | Length | D | E | Weight [kg] | |
| Flange Olet 900# | 10-STD | 210 | 62,5 | ||
| XS-80 | 225 | 381 | 62 | 64,3 | |
| 160-XXS | 250 | 66 | |||
| Bore schedule | Length | D | E | Weight [kg] | |
| Flange Olet 1500# | 10-STD | 240 | 87,5 | ||
| XS-80 | 255 | 394 | 88,9 | 89 | |
| 160-XXS | 285 | 91,2 | |||
| Bore schedule | Length | D | E | Weight [kg] | |
| Flange Olet 2500# | 10-STD | 340 | 186 | ||
| XS-80 | 360 | 483 | 114,3 | 189 | |
| 160-XXS | 385 | 192,5 | |||
High Nickel Alloy Flexolet - Dimensions Chart
Dimensions of High Nickel Alloy Flexolet
| Standard | Outlet Size | Dimensions | Appx Weight | ||
|---|---|---|---|---|---|
| Inches | A | B | C | Pounds | |
| 3/8 | 3/4 | 1 | 0.493 | 0.10 | |
| 1/2 | 3/4 | 1 1/8 | 0.622 | 0.12 | |
| 3/4 | 7/8 | 1 1/2 | 0.824 | 0.22 | |
| 1 | 1 1/16 | 1 13/16 | 1.062 | 0.32 | |
| 1 1/4 | 1 1/4 | 2 1/4 | 1.38 | 0.64 | |
| 1 1/2 | 1 5/16 | 2 9/16 | 1.625 | 0.78 | |
| 2 | 1 1/2 | 3 5/16 | 2.313 | 1.14 | |
| 2 1/2 | 1 5/8 | 3 21/32 | 2.500 | 1.94 | |
| 3 | 1 3/4 | 4 9/32 | 3.125 | 2.60 | |
| 4 | 2 | 5 3/8 | 4.145 | 4.12 | |
| 6 | 2 3/8 | 7 21/32 | 6.112 | 11 | |
| Extra Strong | Outlet Size | Dimensions | Appx Weight | ||
|---|---|---|---|---|---|
| Inches | A | B | C | Pounds | |
| 3/8 | 3/4 | 1 | 0.423 | 0.10 | |
| 1/2 | 3/4 | 1 1/8 | 0.546 | 0.12 | |
| 3/4 | 7/8 | 1 1/2 | 0.742 | 0.18 | |
| 1 | 1 1/16 | 2 13/16 | 1.062 | 0.36 | |
| 1 1/4 | 1 1/4 | 2 1/4 | 1.278 | 0.55 | |
| 1 1/2 | 1 5/16 | 2 9/16 | 1.625 | 0.68 | |
| 2 | 1 1/2 | 3 5/16 | 2.313 | 1.24 | |
| 2 1/2 | 1 5/8 | 3 21/32 | 2.500 | 2.26 | |
| 3 | 1 3/4 | 4 9/32 | 3.125 | 2.84 | |
| 4 | 2 | 5 3/8 | 4.145 | 4.56 | |
| 6 | 3 1/16 | 7 23/32 | 5.800 | 15.00 | |
High Nickel Alloy Latrolet - Threaded and Socket Weld - Dimensions Chart
Dimensions of Threaded and Socket Weld Latrolet (Class 3000)
| Class 3000 Threaded and Socket Weld | ||||
|---|---|---|---|---|
| Size | A | B | C | E |
| 1/4 | 39.69 | 59.53 | 36.51 | 39.69 |
| 3/8 | 39.69 | 59.53 | 36.51 | 39.69 |
| 1/2 | 39.69 | 59.53 | 36.51 | 39.69 |
| 3/4 | 47.63 | 69.85 | 44.45 | 48.42 |
| 1 | 55.56 | 82.55 | 53.98 | 55.56 |
| 1 1/4 | 63.50 | 97.63 | 66.68 | 74.61 |
| 1 1/2 | 69.85 | 107.16 | 76.99 | 66.68 |
| 2 | 85.73 | 138.11 | 104.78 | 80.17 |
Dimensions of Latrolet (Class 6000)
| Class 6000 Threaded and Socket Weld | ||||
|---|---|---|---|---|
| Size | A | B | C | E |
| 1/4 | 39.69 | 59.53 | 36.51 | 39.69 |
| 3/8 | 39.69 | 59.53 | 36.51 | 39.69 |
| 1/2 | 47.63 | 69.85 | 44.45 | 48.42 |
| 3/4 | 55.56 | 82.55 | 53.98 | 55.56 |
| 1 | 63.50 | 92.87 | 66.68 | 62.71 |
| 1 1/4 | 69.85 | 107.16 | 76.99 | 66.68 |
| 1 1/2 | 85.73 | 138.11 | 104.78 | 80.17 |
| 2 | 85.73 | 138.11 | 104.78 | 80.17 |
High Nickel Alloy Latrolet - Butt Weld - Dimensions Chart
Dimensions of Butt Weld Latrolet (Standard & XS)
| Standard & XS Butt Weld | ||||
|---|---|---|---|---|
| Size | A | B | C | E |
| 1/4 | 33.34 | 53.18 | 36.51 | 39.69 |
| 3/8 | 33.34 | 53.18 | 36.51 | 39.69 |
| 1/2 | 34.93 | 54.77 | 36.51 | 39.69 |
| 3/4 | 42.86 | 64.29 | 44.45 | 48.42 |
| 1 | 50.01 | 76.20 | 53.98 | 55.56 |
| 1 1/4 | 57.94 | 91.28 | 66.68 | 62.71 |
| 1 1/2 | 62.71 | 100.81 | 76.99 | 66.68 |
| 2 | 80.96 | 133.35 | 104.78 | 86.52 |
| 2 1/2 | 80.17 | 131.76 | 104.78 | 80.17 |
| 3 | 96.84 | 158.75 | 126.21 | 96.04 |
| 4 | 120.65 | 198.44 | 163.51 | 115.89 |
Dimensions of Butt Weld Latrolet (Sch. 160 and XXS)
| Sch. 160 and XXS Butt Weld | |||
|---|---|---|---|
| Size | A | B | C |
| 1/4 | 39.69 | 58.74 | 36.51 |
| 3/8 | 39.69 | 58.74 | 36.51 |
| 1/2 | 46.04 | 69.85 | 44.45 |
| 3/4 | 53.98 | 82.55 | 53.98 |
| 1 | 63.50 | 96.84 | 66.68 |
| 1 1/4 | 69.85 | 107.95 | 76.20 |
| 1 1/2 | 85.73 | 136.53 | 104.78 |
High Nickel Alloy Nipolet - Dimensions Chart
Dimensions of Nipolet
| Plain end and Threaded | |||||||
|---|---|---|---|---|---|---|---|
| Size | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | |
| XS | A | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 |
| C | 15/16 | 1 3/16 | 1 7/16 | 1 3/4 | 2 | 2 9/16 | |
| XXS | A | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 | 3 1/2 |
| C | 9/16 | 3/4 | 1 | 1 5/16 | 1 1/2 | 1 11/16 | |
High Nickel Alloy Sockolet Fitting - Dimensions & Weight Chart
Dimensions of Sockolet MSS SP-97 (Class 3000 “Size on Size”)
| Outlet Size (NPT) | A | B | C | D | E | Approx. Weight (lb) |
|---|---|---|---|---|---|---|
| 1/2 | 1 | 1 3/8 | 15/16 | 0.622 | 17/32 | 0.15 |
| 3/4 | 1 1/16 | 1 5/8 | 1 3/16 | 0.824 | 15/32 | 0.25 |
| 1 | 1 5/16 | 2 | 1 7/16 | 1.049 | 23/32 | 0.45 |
| 1 1/4 | 1 5/16 | 2 3/8 | 1 3/4 | 1.380 | 9/16 0.65 | |
| 1 1/2 | 1 3/8 | 2 7/8 | 2 | 1.610 | 21/32 | 0.85 |
| 2 | 1 1/2 | 3 1/2 | 2 9/16 | 2.067 | 15/16 | 1.40 |
| 2 1/2 | 1 9/16 | 4 1/16 | 3 | 2.469 | 3/4 | 2.25 |
| 3 | 1 3/4 | 4 13/16 | 3 11/16 | 3.068 | 15/16 | 3.75 |
| 3 1/2 | 1 11/16 | 5 3/8 | 4 7/16 | 3.548 | 11/16 | 4.30 |
| 4 | 1 7/8 | 6 1/16 | 4 3/4 | 4.026 | 1 1/16 | 6.60 |
| 5 | 2 7/16 | 7 1/4 | 5 1/4 | 5.047 | 1 | 9.00 |
| 6 | 2 11/16 | 8 11/16 | 6 1/16 | 6.065 | 1 3/16 | 15.50 |
Dimensions of Sockolet MSS SP-97 (Class 6000 “Size on Size”)
| Outlet Size (NPS) | A | B | C | D | E | Approx. Weight (lb) |
|---|---|---|---|---|---|---|
| 1/2 | 1 1/4 | 1 23/32 | 3/4 | 0.466 | 7/8 | 0.50 |
| 3/4 | 1 7/16 | 1 61/64 | 1 | 0.614 | 7/8 | 0.80 |
| 1 | 1 9/16 | 2 7/16 | 1 5/16 | 0.815 | 15/16 | 1.30 |
| 1 1/4 | 1 5/8 | 2 23/32 | 1 1/2 | 1.160 | 13/16 | 1.60 |
| 1 1/2 | 1 11/16 | 3 1/4 | 1 15/16 | 1.338 | 7/8 | 2.00 |
| 2 | 2 1/16 | 4 1/32 | 2 3/4 | 1.689 | 1 3/16 | 5.15 |
High Nickel Alloy Sweepolet - Dimensions Chart
Dimensions of Sweepolet ( ANSI, FCS (IN))
| Run Size (NPS) | Outlet Size (NPS) | A | B |
|---|---|---|---|
| 6 to 36 | 1 1/4 | 1 1/4 | 4 |
| 6 to 36 | 1 1/2 | 1 3/4 | 5 1/2 |
| 6 to 36 | 2 | 1 1/2 | 5 1/2 |
| 6 to 36 | 3 | 1 21/32 | 7 |
| 6 to 36 | 4 | 2 1/32 | 8 3/4 |
| 10 to 36 | 6 | 2 11/16 | 13 |
| 12 to 36 | 8 | 3 | 15 |
| 16 to 36 | 10 | 3 1/8 | 18 1/2 |
| 16 to 36 | 12 | 3 5/16 | 20 1/2 |
| 20 to 36 | 14 | 3 5/8 | 24 |
| 24 to 36 | 16 | 3 3/4 | 28 |
| 24 to 36 | 18 | 4 5/8 | 31 |
| 24 to 36 | 20 | 5 1/8 | 33 |
| 30 to 36 | 24 | 5 5/8 | 38 |
High Nickel Alloy Thredolet - Dimensions Chart
Dimensions of Thredolet (Class 3000)
| Size in Inches | A | B | C | Weight in KG |
|---|---|---|---|---|
| 1/8 | 19.05 | 25.40 | 15.88 | 0.05 |
| 1/4 | 19.05 | 25.40 | 15.88 | 0.05 |
| 3/8 | 20.64 | 31.75 | 19.05 | 0.09 |
| 1/2 | 25.40 | 35.72 | 23.81 | 0.11 |
| 3/4 | 26.99 | 43.66 | 29.37 | 0.16 |
| 1 | 33.34 | 50.80 | 36.51 | 0.27 |
| 1 1/4 | 33.34 | 65.09 | 44.45 | 0.41 |
| 1 1/2 | 34.93 | 72.23 | 50.80 | 0.45 |
| 2 | 38.10 | 88.11 | 65.09 | 0.79 |
| 2 1/2 | 46.04 | 103.19 | 76.20 | 1.36 |
| 3 | 50.80 | 122.24 | 93.66 | 1.97 |
| 3 1/2 | 53.98 | 132.56 | 101.60 | 2.61 |
| 4 | 57.15 | 151.61 | 120.65 | 3.22 |
| 5 | 66.68 | 185.74 | 141.29 | 5.44 |
| 6 | 69.85 | 219.08 | 169.86 | 6.94 |
Dimensions of Thredolet (Class 6000)
| Size in Inches | A | B | C | D | Weight in KG |
|---|---|---|---|---|---|
| 1/4 | 28.58 | 34.13 | 14.29 | 0.14 | |
| 3/8 | 28.58 | 34.13 | 14.29 | 0.14 | |
| 1/2 | 31.75 | 43.66 | 19.05 | 0.20 | |
| 3/4 | 36.51 | 49.61 | 25.40 | 0.34 | |
| 1 | 39.69 | 61.91 | 33.34 | 0.57 | |
| 1 1/4 | 41.28 | 69.06 | 38.10 | 0.73 | |
| 1 1/2 | 42.86 | 82.55 | 49.21 | 0.88 | |
| 2 | 55.03 | 102.39 | 69.85 | 2.27 |
Dimensions of Thredolet (Size on Size Class 3000 Dimensions)
| Size in Inches | A | B | C | D | Weight in KG |
|---|---|---|---|---|---|
| 1/2 | 25.40 | 34.93 | 23.81 | 15.88 | 0.07 |
| 3/4 | 26.99 | 41.28 | 30.16 | 20.64 | 0.11 |
| 1 | 33.34 | 50.80 | 36.51 | 26.99 | 0.20 |
| 1 1/4 | 33.34 | 60.33 | 44.45 | 34.93 | 0.32 |
| 1 1/2 | 34.93 | 73.03 | 50.80 | 41.28 | 0.41 |
| 2 | 38.10 | 88.90 | 65.09 | 52.39 | 0.64 |
| 2 1/2 | 48.42 | 103.19 | 76.20 | 63.50 | 1.13 |
| 3 | 50.80 | 122.24 | 93.66 | 77.79 | 1.95 |
| 3 1/2 | 53.98 | 136.53 | 112.71 | 90.49 | 2.04 |
| 4 | 57.15 | 153.99 | 120.65 | 103.19 | 3.08 |
| 5 | 61.91 | 184.15 | 133.35 | 133.35 | 4.17 |
| 6 | 69.85 | 220.66 | 146.05 | 146.05 | 7.12 |
| Outlet Sizes | A | B | C | Brazing Surface | F-MIN. MIL-1183 |
|---|---|---|---|---|---|
| 1/4 | 11/16 | 1 | 9/16 | 0.188 | 0.700 |
| 3/8 | 13/16 | 1 1/4 | 3/4 | 0.190 | 0.855 |
| 1/2 | 13/16 | 1 1/4 | 3/4 | 0.190 | 0.855 |
| 3/4 | 1 | 1 7/16 | 7/8 | 0.220 | 1.020 |
| 1 | 1 1/16 | 1 3/4 | 1 1/8 | 0.240 | 1.250 |
| 1 1/4 | 1 1/4 | 2 1/8 | 1 7/16 | 0.270 | 1.535 |
| 1 1/2 | 1 5/16 | 2 9/16 | 1 3/4 | 0.300 | 1.900 |
| 2 | 1 3/8 | 2 7/8 | 2 | 0.330 | 2.160 |
| 2 1/2 | 1 1/2 | 3 1/2 | 2 9/16 | 0.360 | 2.675 |
| 3 | 1 13/16 | 4 1/8 | 3 | 0.384 | 3.215 |
| 4 | 2 1/8 | 5 1/2 | 4 5/16 | 0.437 | 4.400 |
Inconel Brazolet Applications
Oil and Gas
Nuclear Power & Defence
Petrochemical
LNG
Desalination
Mining & Minerals
Myanmar, Nepal, Thailand, Vietnam, Philippines, Malaysia, Indonesia,
Singapore, Taiwan, Tasmania, Sri Lanka, Bangladesh, Bhutan, Cambodia,
Australia, New Zealand, Afghanistan, Tajikistan, Kyrgyzstan, Kazakhstan,
Uzbekistan, Turkmenistan, Iran, United Arab Emirates(UAE), Saudi Arabia,
Oman, Yemen, Iraq, Azerbaijan, Turkiye, Syria, Lebanon, Israel, Kenya,
Egypt, South Sudan, Eritrea, Djibouti, Ethiopia, Libya, Rwanda, Mali,
Niger, Chad, Central Africa Republic, Nigeria, Cameroon, Somalia, DRC,
Uganda, Tanzania, Angola, Zambia, Madagascar, Malawi, Namibia, Benin,
Zimbabwe, Botswana, Lesotho, South Africa, Algeria, Tunisia, Morocco,
Eswatini, Liberia, Sierra Leone, The Gambia, Senegal, Mozambique, Togo,
Mauritania, Burkina Faso, Ghana, Equatorial Guinea, Jordan, Timor-Leste,
Palestine, Laos, Armenia, Georgia, Maldives, Cyprus, Kuwait, Qatar, Peru,
Bahrain, Brunei, Finland, France, Germany, Ireland, Iceland, UK, US,
Greece, Hungary, Italy, Norway, Poland, Slovakia, Sweden, Canada, Fiji,
Romania, Cuba, Panama, Brazil, Colombia, Chile, Argentina, Venezuela,
Naypyidaw, Kathmandu, Bangkok, Hanoi, Manila, Kuala Lumpur, Jakarta, Tunis,
Jurong East, Taipei City, Hobart, Sri Jayawardenepura Kotte, Dhaka, Thimphu,
Phnom Penh, Canberra, Wellington, Kabul, Dushanbe, Bishkek, Astana, Abuja,
Tashkent, Ashgabat, Tehran, Abu Dhabi, Riyadh, Muscat, Sana’a, Baghdad, Pretoria,
Baku, Ankara, Damascus, Beirut, Jerusalem, Nairobi, Cairo, Juba, Asmara, Rabat,
Djibouti city, Addis Ababa, Tripoli, Kigali, Bamako, Niamey, N’Djamena, Bangui,
Yaoundé, Mogadishu, Kinshasa, Kampala, Dodoma, Luanda, Lusaka, Antananarivo,
Lilongwe, Windhoek, Porto-Novo, Harare, Gaborone, Maseru, Cape Town, Bloemfontein,
Algiers, Mbabane, Lobamba, Monrovia, Freetown, Banjul, Dakar, Maputo, Lomé, Dili,
Nouakchott, Ouagadougou, Accra, Malabo, Amman, Vientiane, Yerevan, Tbilisi, Rome,
Malé, Nicosia, Kuwait City, Doha, Lima, Manama, Bandar Seri Begawan, Paris,
Helsinki, Berlin, Dublin, Reykjavík, London, Washington D.C., Athens, Budapest,
Oslo, Warsaw, Bratislava, Stockholm, Ottawa, Suva, Bucharest, Havana, Panama City,
Brasília, Bogotá, Santiago, Buenos Aires, Caracas, Mumabi, Chennai, Bengaluru,
Kolkata, Hyderabad, Pune, Ahmedabad, Jaipur, Surat, Visakhapatnam, Indore, New Delhi
Lucknow, Nagpur, Kochi, Kanpur, Guwahati, Coimbatore, Noida, Ghaziabad, Patna
